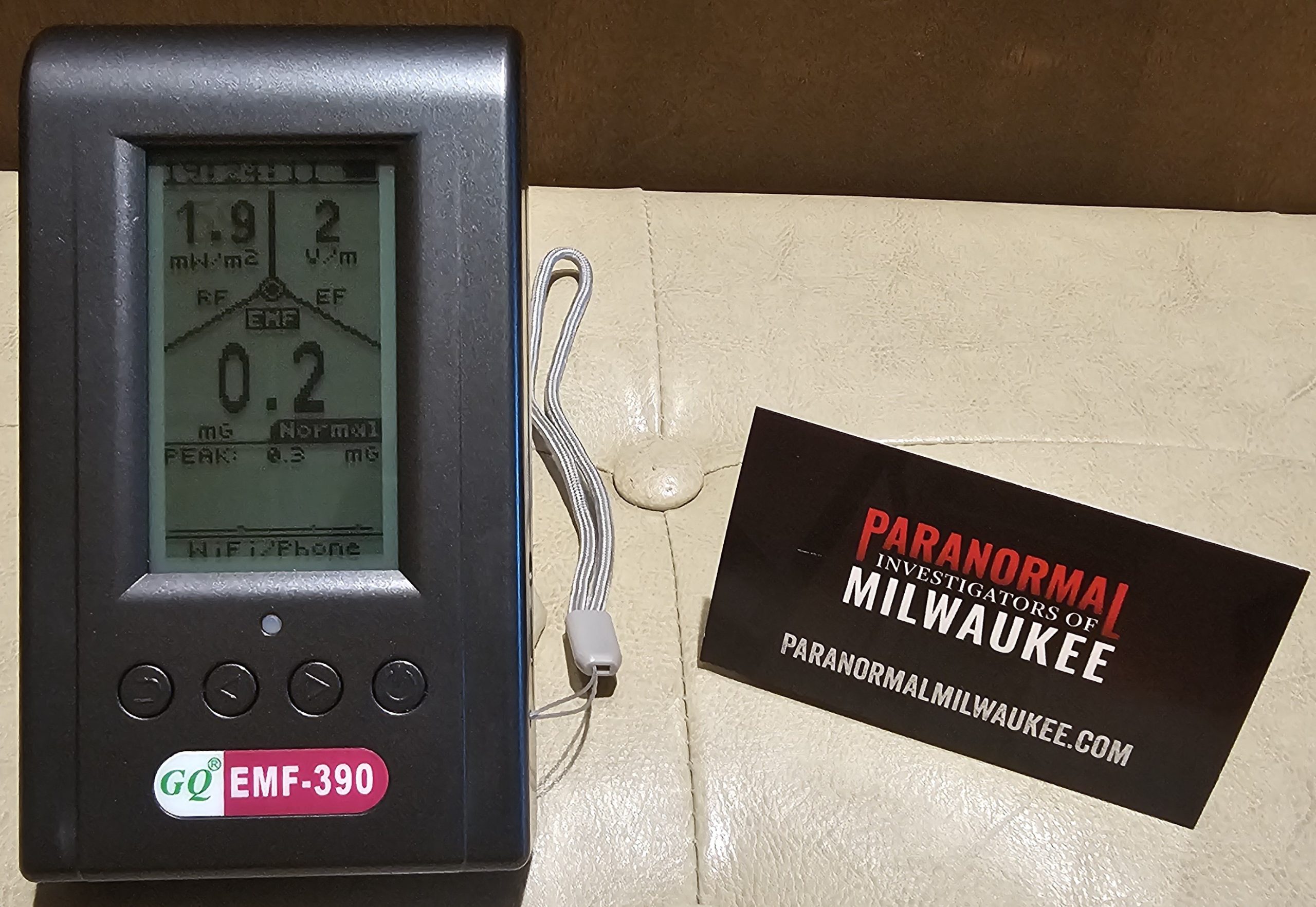

EMF-390 multi-function digital EMF meter has integrated testing features which include three axis Electromagnetic Fields, Electric Field, Radio Frequency and Radio Spectrum Power Analyzer. The meter is able to identify common sources from EMF measured, such as Power Line, WiFi etc. It also comes with a built-in audible and visual alarm and electronic gyroscope.

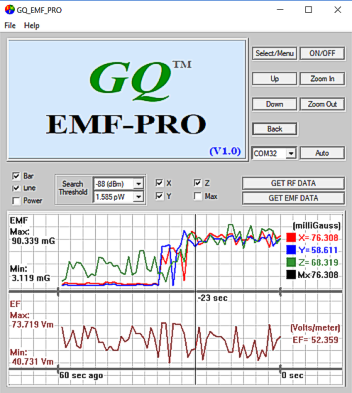

It can be used for EMF,EF, RF and 5G network detection and monitoring both indoor and outdoor. It can continually monitor the radiation via on board flash memory for data logging and saving. The data can be logged every second and can be downloaded into .csv format file with free software EMF-PRO (PC and Mac versions available).

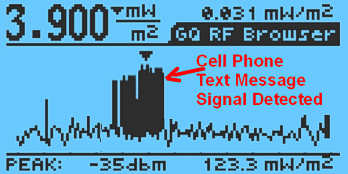

GQ RF Browser is specifically designed for Cellphone, Cell Tower, Smart Meter, WiFi RF radiation monitoring.

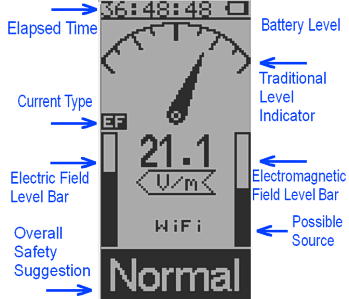

Safety suggestion indicator provides a simple and easy way to understand overall radiation risk.
The device is equipped with an USB port, utilized for communication and external power supply/charging of the internal rechargeable Li-Ion 3.6V/3.7V battery.The GQ EMF-390 internal rechargeable battery can be charged with a standard USB port, USB charger or with a computer USB port. Using the external power, continuous data monitoring is possible. Using either power adapter you will not have to worry about the batteries charge condition or any data loss.The EMF-390 also has a real time clock on board for time related data measurement.
PIM uses this device as an EMF meter for taking baseline readings, as well as, part of the battery of control equipment each PIM investigator is outfit with for investigations. Since this meter datalogs and records continuously, any changes in EMF fields that a PIM investigator may encounter (whether they realize it or not) can be documented and graphed over time. This allows not only for better documentation of the environment during an investigation but allows for easy corroboration of environmental changes across different datalogging meters.
Specs:
- EMF (Electromagnetic Field)
- Triple axis (X, Y, Z)Detectable low frequency: 0.5Hz to 150Khz
- Range: 0.0~500mG
- Resolution: 0.1/1 mG
- EF (Electric Field)
- Range: 0V/m to 1000V/m
- Resolution: 1 V/m
- RF Field (Radio Frequency Field)
- Detectable RF frequency: 10Mhz to 10GHz

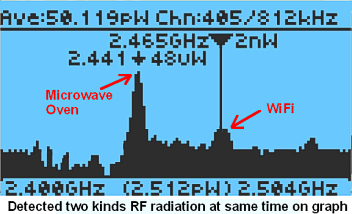

- RF Spectrum Power Analyzer
- Frequency band 1: 50MHz to 65MHz
- Frequency step: 100KHz
- Frequency span: 100KHz
- Frequency band 2: 65MHz to 76MHz
- Frequency step: 100KHz
- Frequency span: 100KHz
- Frequency band 3: 76MHz to 108MHz
- Frequency step: 100KHz
- Frequency span: 100KHz
- Frequency band 4: 240MHz to 1040MHz
- Frequency step: 1KHz to 10KHz
- Frequency span: 50KHz to 4000KHz
- Frequency band 5: 2.4Ghz to 2.5GHz
- Frequency step: 25KHz to 405KHz
- Frequency span: 58KHz to 812KHz
- Audible alarm: beep/siren
- Visual alarm: green, red LED
- Operating temperature & humidity: 5 to 40 degree C, below 80% RH
- Working Voltage: 3.6-3.7V
- Display: LCD dot matrix, back lighted
- Power Consumption: 25mW to 125mW (backlight dependant)
- Power: Supply 3.7V Li-Ion battery / USB power
- Dimensions 135 x 78 x 25 mm (5.25’x 3′ x 1′)
Manual can be downloaded here.
